With the booming self-care economy, multi-functional aroma diffusers become mainstream home appliances. This article introduces a complete ultrasonic aromatherapy machine solution using FMD 8-bit microcontroller, covering atomization control, RGB ambient light, touch sliding control, multi-layer safety protection, low power consumption design, BOM cost optimization and mass application scenarios for hardware developers and product manufacturers.
1. Industry Background: Self-Care Economy Drives Upgraded Demand for Multi-Functional Aroma Diffusers
The rise of the “self-pleasing economy” has completely reshaped consumer demand for household aroma diffusers. Modern aromatherapy equipment is no longer a simple fragrance dispersing device; it has evolved into an integrated product combining fragrance diffusion, ambient lighting, atmosphere rhythm adjustment and emotional relief.
In the mainstream hundred-yuan consumer market, brand competition becomes fierce. To build obvious product differentiation, manufacturers need to deliver refined atomization effect, soft lighting rhythm and ultra-quiet operation experience, while strictly controlling total BOM cost to maintain profit margin.
Traditional solutions usually adopt multiple discrete chips or high-cost 32-bit MCUs to realize atomization drive, colorful light and touch control simultaneously, which brings high material cost and complicated PCB layout. FMD 8-bit MCU solves this pain point perfectly. Benefiting from high integration, ultra-low power consumption and abundant built-in PWM & ADC resources, a single 8-bit microcontroller can drive four core modules: ultrasonic atomization, RGB atmosphere lamp, touch key slider and full safety protection. Manufacturers can achieve 32-bit-level product experience under the cost budget of 8-bit chips.
2. Full Core Functions of FMD MCU Aroma Diffuser Scheme
This household aroma diffuser solution takes FMD 8-bit MCU as the master control chip, and all core logic is realized by single-chip software control. All functional modules are optimized for mass production stability and user experience.
2.1 Ultrasonic Atomization Module: Stable Atomization Output with Automatic Frequency Tracking
The scheme supports dual frequency points of 108kHz and 113kHz. The MCU collects the vibration amplitude voltage of the atomizing plate every 200ms, and adjusts the PWM duty cycle through closed-loop algorithm to realize automatic frequency tracking.
This design effectively avoids atomization attenuation caused by water level fluctuation, ambient temperature drift and aging of atomizing tablets.
Two atomization working modes are reserved for users:
- Continuous mode: Default auto power-off after 8 hours of continuous work;
- Intermittent mode: Work for 30 seconds and pause for 15 seconds, the total battery life extends up to 16 hours.

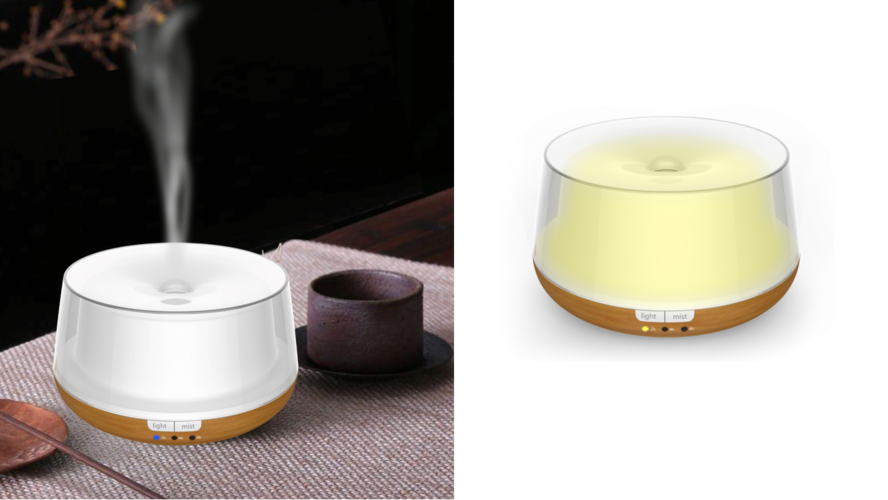

2.2 3-Channel RGB Ambient Light: Rich Gradient Lighting Independent of Atomization
The MCU carries three independent 8-bit PWM channels, supporting full true color display of 256×256×256 color gamut. Seven factory pre-set dynamic light rhythm modes are built in, including breathing light, rainbow gradient, flame simulation and soft gradual change.
Users can slide the touch strip to adjust brightness and color temperature steplessly in real time.
Lighting and atomization functions support independent switch control, to meet diverse night scene demands: fragrance only without light, or ambient light only without mist.
2.3 Touch Keys & Sliding Strip Control: Anti-Misoperation Hardware Touch Design
- Short press the main touch key to power on or switch working modes; long press for 2 seconds to activate lock screen function to prevent accidental touch by children or collision;
- Horizontal sliding strip realizes stepless light dimming;
- The internal hardware comparator of MCU completes touch signal scanning, with strong anti-interference performance. It can stably work when the touch wiring length exceeds 15cm, and pass 4kV EFT anti-interference test.
2.4 Multi-Dimensional Safety Protection Mechanism
The scheme sets multiple hardware & software protection logics to eliminate hidden dangers such as dry burning, dumping and battery over-discharge:
- Water level probe real-time detection: Once dry burning is identified, the MCU turns off atomization PWM output within 1 second and reminds users with flashing indicator lights;
- Tilt & fall detection switch: When the inclination angle of the machine exceeds 45°, the whole machine stops working immediately to prevent liquid leakage;
- Lithium battery voltage monitoring: Automatically reduce output power when voltage is lower than 3.2V; forced shutdown below 3.0V to avoid irreversible over-damage of lithium batteries.
2.5 Ultra-Low Power Consumption Design to Meet Global Energy Efficiency Standards
Low power management is the core advantage of FMD 8-bit MCU scheme, which meets international energy efficiency certification requirements and improves battery endurance significantly:
- Standby current of the whole machine is only 6µA, meeting EU ErP standard that standby power less than 0.5W;
- Comprehensive working power: 2.5W (atomization function + 50% brightness light), a 400mAh lithium battery supports 3–4 hours of continuous use;
- Support USB 5V charging while working; the software adjustable charging current (300mA / 500mA optional) matches different PCB heat dissipation layout designs of manufacturers.
3. Mass Production Application Scenarios of This Aroma Diffuser Solution
This highly integrated low-cost MCU scheme adapts to multiple derivative consumer electronic products, with wide market coverage:

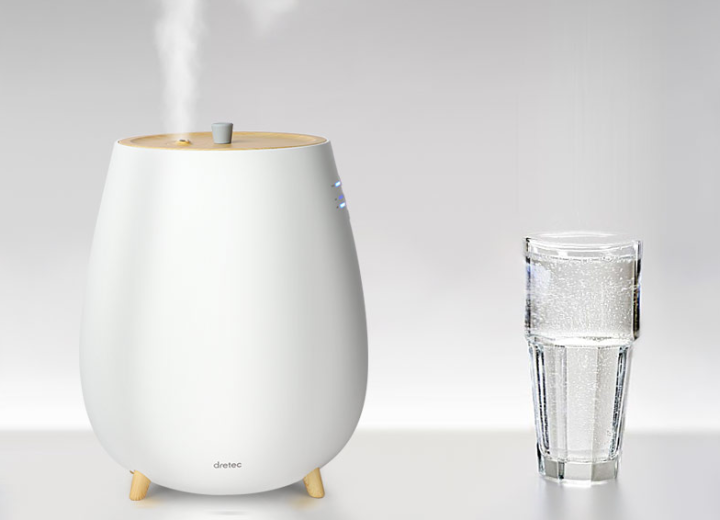

- Household bedroom & living room large capacity aroma diffuser;
- Mini car-mounted humidifier with fragrance function;
- USB bedside night light aromatherapy machine for hotel rooms;

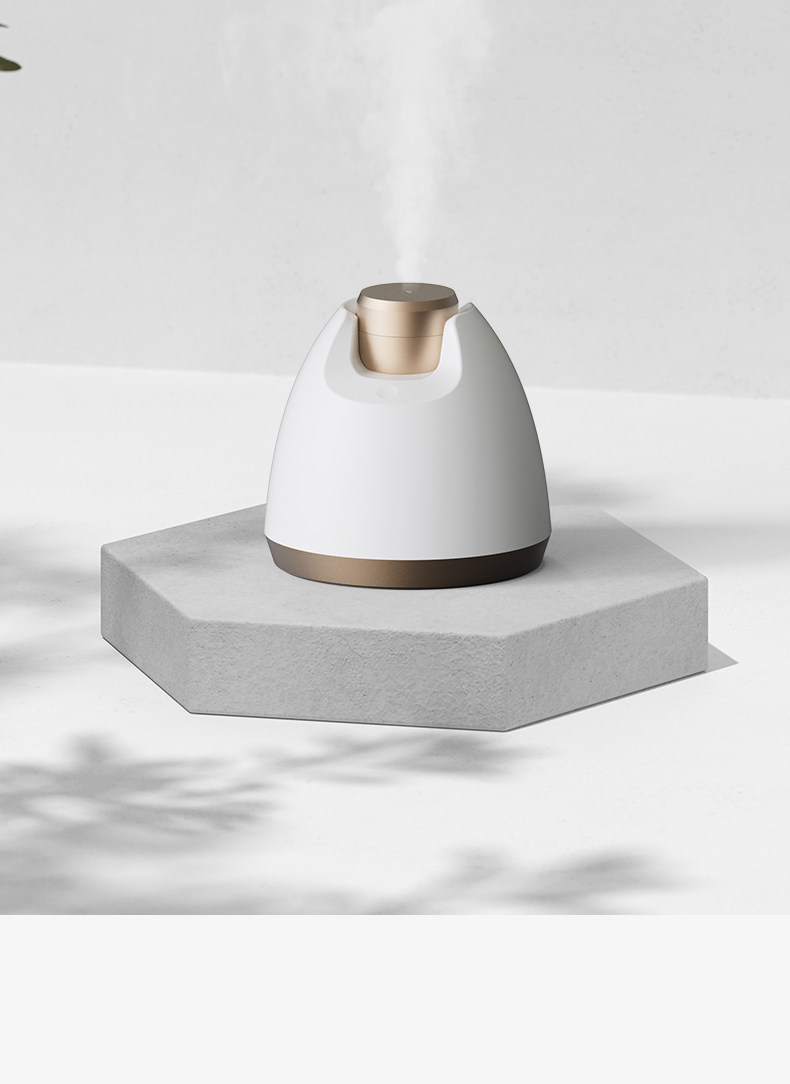

- Silent atmosphere diffuser for office desktop;
- Custom gift sets: Support custom boot-up light effect with brand LOGO for holiday customized gifts.
4. Market Outlook: Upgraded Consumer Demand Brings Opportunities for Cost-Effective MCU Solutions
Consumers’ demand for aroma diffusers has shifted from basic fragrance diffusion to multi-sensory experience integrating smell, vision and atmosphere. More brands tend to launch differentiated mid-range products to seize the hundred-yuan consumer market.
Compared with discrete multi-chip schemes and expensive 32-bit master control schemes, FMD 8-bit single-chip integrated solution greatly reduces raw material BOM cost, simplifies PCB layout and shortens product development cycle. Chip suppliers can provide both 8-bit low-cost MCU and high-performance 32-bit MCU schemes, covering mass basic models and high-end premium products for manufacturers.
For hardware developers, product design companies and home appliance brand manufacturers, single-chip integrated aromatherapy machine master control scheme is the optimal choice to balance product experience, production cost and mass production stability in the current consumer home appliance track.
